Interior Railing Systems
Standoff Systems
Standoff Railings are an option we give to our clients for a compact design with minimal obstruction with glass ranging from 1/2" thickness to 27/32". We offer exterior and interior applications in two finishes available in brushed or polished stainless steel also along with powder coated finishes that can be painted. They are designed for Guard Rail, Stairway, or Ramp areas with either a top cap rail system or hand rail system.

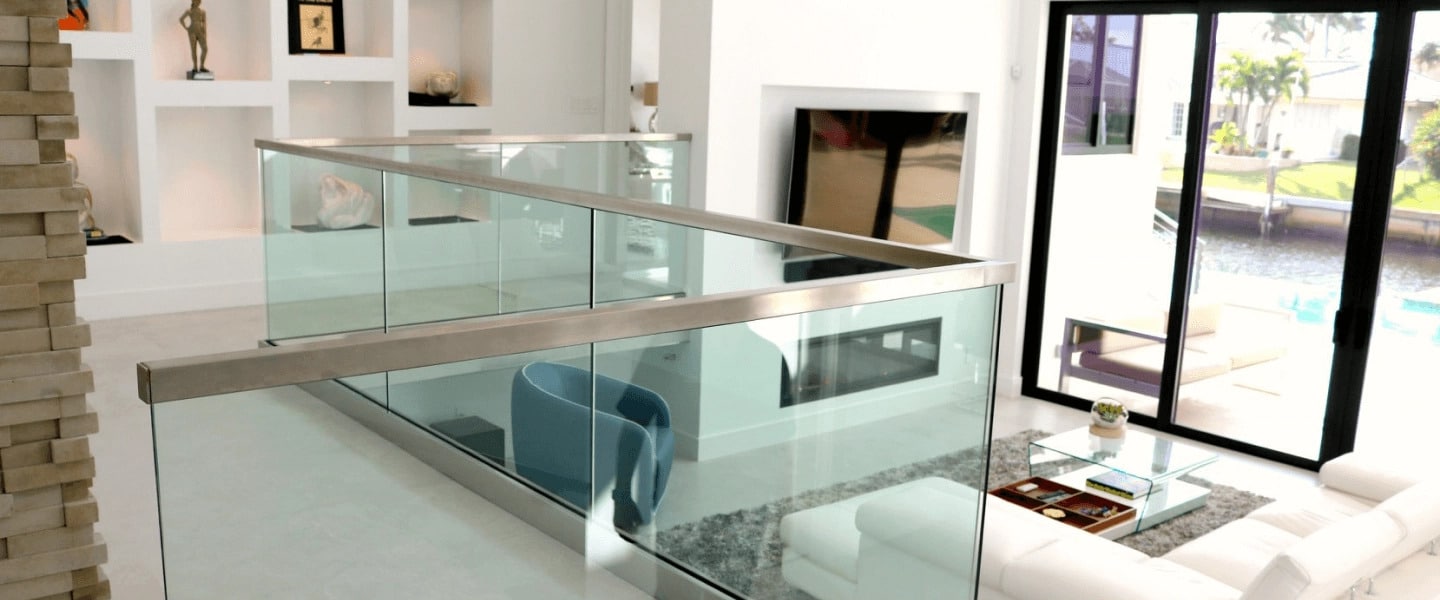

Interior Base Shoe Systems
Interior Base shoes with glass ranging from 1/2" thickness to 3/4" are installed with TAPER-LOC systems which supports all mounting methods with one compact installation / removal tool which eliminates the use of messy cement. Base shoes systems have the option for cap rail and hand rail installation. Base shoes are installed with the option of cladding to match the cap rails finishes available in brushed stainless, polished stainless, polished brass, satin brass satin anodized, dark bronze anodized and also powder coating to match any other finishes the client desires.
Interior Post Railing Systems
Interior Post Railing Systems are designed for hand rail and guard rail applications. This option is designed and engineered to meet or exceed building codes. This application consists of glass ranging from 1/4" to 3/4" thick panels. There are two standard stainless-steel finishes, brushed and polished stainless steel along with the option of custom powder painted finishes. For the top rail you can select from either 1 1/4" or 1 1/2" hand rail tubing.
Interior Square Clamp Post System
This is designed only to accept ½" tempered glass in two standard stainless-steel finishes, brushed and polished stainless steel along with the option of custom powder painted finishes. The square design comes in only 2" dimensions. Post heights are either 36" or 46".
Interior Round Clamp Post System
This is designed only to accept 1/2" tempered glass in two standard stainless-steel finishes, brushed and polished stainless steel along with the option of custom powder painted finishes. The round design comes in only 2" dimensions. Post heights are either 36" or 46".
Stainless Steel Cable Post System
This design is custom fabricated to your specifications. It is available in 1" – 1/2" schedule 40 pipe, 1.90 outside diameter. It comes in polished or brushed stainless steel finish, also mill or powder coated finishes.
Exterior Railing Systems
Exterior Base Shoes
Exterior Base shoes which are similar to our interior base shoe systems consist of glass ranging from 1/2" thickness to 1 1/16" are installed with TAPER-LOC systems which supports all mounting methods with one compact installation/removal tool which eliminates the use of messy cement. Base shoes systems have the option for cap rail and hand rail installation, also with drain blocks to provide drainage for water run-off. This is especially important for balconies or decks where water could dam up unless proper drainage available. Base shoes are installed with the option of cladding to match the cap rails finishes available in brushed stainless, polished stainless, polished brass, satin brass satin anodized, dark bronze anodized and powder coating to match any other finishes the client desires.
Exterior Frameless Windscreen Clamp Systems
This option is great for pool fencing, balcony, and deck applications. This look provides a break from the wind using an almost invisible frameless glass look which is also known as spigots. There are different option models to choose from, core, side and new surface. All models are available in brushed stainless and some in polished. There is an option for a U-channel cap that can be added to the top of the glass for added support or for visual preference.
